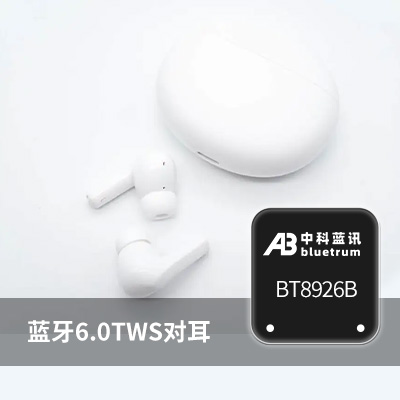

BT8926B2 DataSheet.pdf

CPU and Flexible IO

High performance 32bit RISC-V processor Core with DSP instruction

RISC-V typical speed: 125MHz

Program memory: internal 8M bit flash

Internal 256KB RAM for data and program

Flexible GPIO pins with Programmable pull-up and pull-down resistors

Support GPIO wakeup or interrupt

Bluetooth Radio

Compliant with Bluetooth V6.0 + BR + EDR + BLE specification QDID: Q309899 (Controller) QDID: Q304434 (Host)

TX output power MAX +9dBm;

RX Sensitivity with -94dBm @2M EDR;

Support TWS communication with balance-efficiency Power consumption;

Support TWS Master-slave switch;

Audio Interface

High performance mono DAC with 98dB SNR, support single end mode or differential mode;

One channel high performance ADC with 90dB SNR;

One channel MIC amplifier input;

Support flexible audio EQ adjust;

Support Sample rate 8, 11.025, 12, 16, 22.05, 32, 44.1 and 48KHz;

One channel Analog MUX;

Package

QFN20;

Temperature

Operating temperature: -40℃ to +85℃;
Storage temperature: -65℃ to +150℃;
