AB5602C DataSheet.pdf

CPU and Flexible IO

RISC-V 32bit High performance CPU with DSP instruction;

Maximum 120MHz operating frequency;

128k bytes SRAM; ? Program memory: internal 4M bit flash;

Flexible GPIO pins with Programmable pull-up and pull-down resistors;

Support GPIO wakeup or interrupt;

Bluetooth Radio

Compliant to Bluetooth 6.0 (QDID: Q342943)

TX output power +6dBm in typical;

RX Sensitivity with -90.5dBm @EDR;

BLE supports the transmission rate of 1Mbps;

BLE transmission power ranges from 7dBm to 12dBm;

BLE Sensitivity with -88.3dBm in typical;

Audio Interface

Audio codec with 16bit mono DAC and 16bit mono ADC;

Support flexible audio EQ adjust;

Support Sample rate 8, 11.025, 12, 16, 22.05, 32, 44.1 and 48KHz;

4 channel Analog MUX;

One channel MIC amplifier input;

High performance mono audio ADC with 90dB SNR;

High performance audio DAC with 96dB SNR, with headphone amplifier output;

Package
QFN32;

Temperature

Operating temperature: -40℃ to +85℃;
Storage temperature: -65℃ to +150℃;

Product Applications

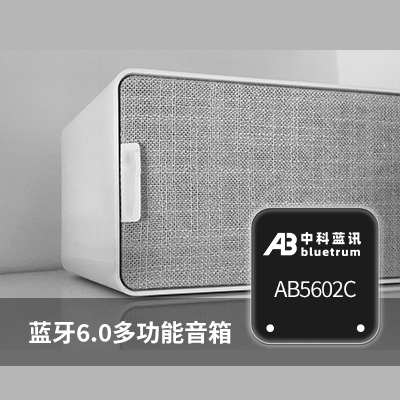

帶屏多功能音箱；簡易版拉桿箱；聲霸
