Key Features
High performance 32bit RISC-V processor Core with DSP instruction
Maximum 160MHz operating frequency;
Internal 20KB RAM for data and program; 8K cache;
Support program encryption;
Musical Instrument Digital Interface(MIDI);
10-bit SAR ADC x14;
0.5 watt Class-D audio amplifier output；
Built in PMU; capless LDOs; LDO;
Watch Dog x1;
Frequency detector;
16-bit Timer x3;
Hardware Cap-sense Touch Key x24;
Master/Slave SPI x2;
Master/Slave IIC x1;
Normal UART x1; High Speed UART with CTS/RTS x1;
Timer2 PWM channel x2; PWM output channel x4; PWM timer capture channel x4
SD Card Host controller x1；
RC Clock frequency；
Applications

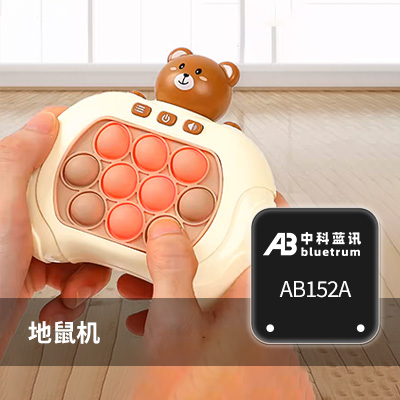

Audio Playing Toys；
MCU；
- CPU： RISC-V + DSP擴展 (160MHz)
- 封裝： QFN32
- 藍牙協議： 無
- Flash： 4 Mbit
- 內置充電： 支持
- DAC： 無
- ADC： 單聲道
