CPU and Flexible IO
32bit High performance CPU with DSP instruction;
Program memory: internal 2M bit flash ;
Flexible GPIO pins with Programmable pull-upand pull-down resistors;
Support GPIO wakeup or interrupt;

Bluetooth Radio
Compliant to Bluetooth 5.2 and BLE specification (QDID: 181186);
TX output power +2dBm in typical;
RX Sensitivity with -90.5dBm @Basic Rate;

Audio Interface
Audio codec with 16bit mono DAC and 16bitmono ADC;
Support flexible audio EQ adjust;
Support Sample rate 8, 11.025, 12, 16, 22.05, 32, 44.1 and 48KHz;
Mono MIC amplifier input;
High performance Stereo audio ADC with 90dB SNR;
High performance Stereo audio DAC with 95dB SNR, with headphone amplifier output;

Package
QFN20;

Temperature
Operating temperature: -40℃ to +85℃;
Storage temperature: -65℃ to +150℃;

Product Applications

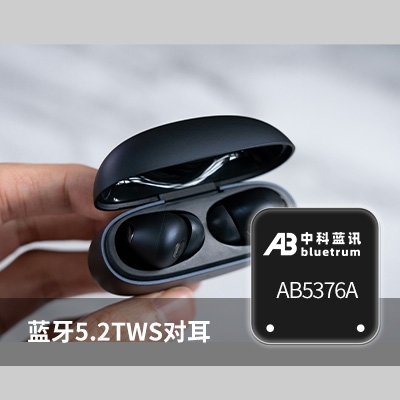

藍牙5.0TWS耳機-內置Flash
